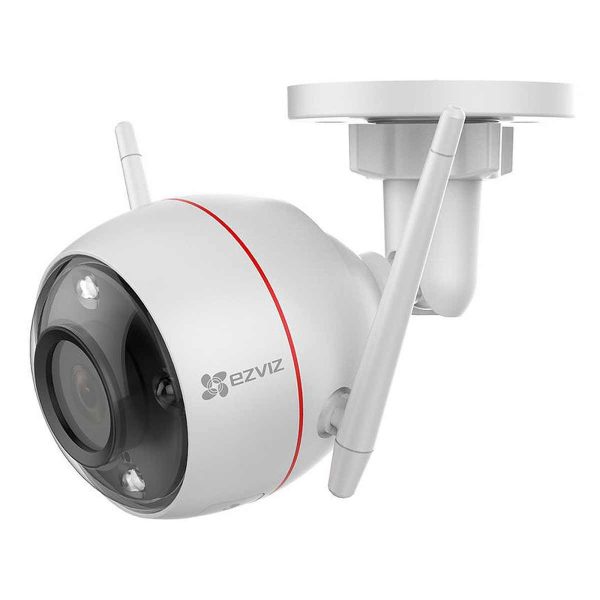

C3W Pro (4MP)
Color night vision camera.
Specifications
| Model Parameters | |
|---|---|
| Model | CS-C3W-A0-3H4WFRL |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @F1.6, view angle: 100° horizontal, 121° diagonal 4 mm @F1.6, view angle: 82° horizontal, 97° diagonal |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| General | |
| Working Temperature | -30 °C to 60 °C (22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Power Supply | DC 12 V / 1 A |
| Power Consumption | Max. 6 W |
| IP Grade | IP67 |
| Night Vision Distance (Black/White Night Vision Mode) | Max. 30 m (98.43 ft.) |
| Dimensions | 72 mm × 72 mm × 150 mm (2.83” × 2.83” × 5.91”) |
| Packaging Dimensions | 252 mm × 110 mm × 92 mm (9.92” × 4.33” × 3.62”) |
| Net Weight | 395 g(0.87 lbs) |
| Network | |
| User Defined Alarm Tones | Supports |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Max. Bitrate | 2M |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max: 30 fps; Self-adaptive during network transmission |
