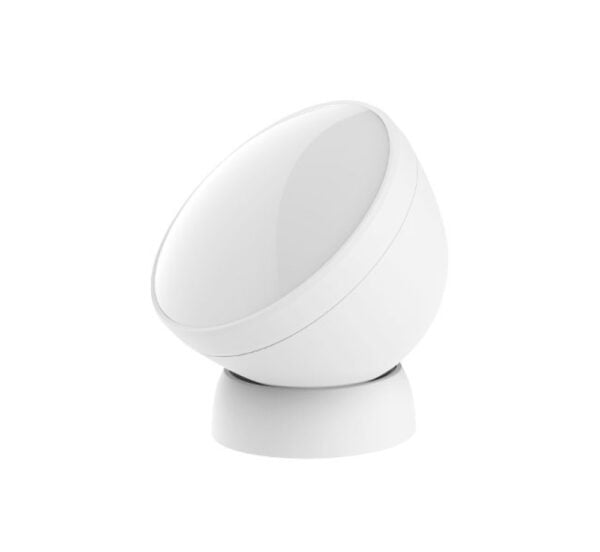

T1C PIR Motion Sensor
Know when there’s activity at home
Specifications
| Specifications | |
|---|---|
| Model | CS-T1C-A0-BG |
| General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 92 g (3.2 oz) with package |
| Detection | |
| Detection Type | Passive infrared (PIR) |
| Detection Distance | Up to 7 m / 23 ft |
| Detection Angle | 90° horizontal, 90° vertical |
| Recommended Installation Height | 1.8 to 2.5 m for wall-mounted installation |
| Pet-Proof Detection | Requires using the pet shield and an installation height of 50 cm or higher above the pet |
| Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Methods | Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
| Battery | |
| Battery Type | Cell battery CR2450 |
| Battery Life | High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
| Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
