Front panel components

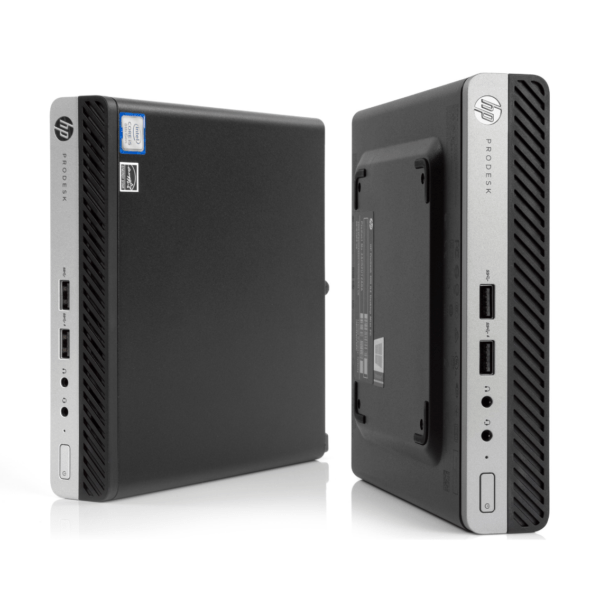

Figure : Front panel components
NOTE:
Your computer model may look slightly different from the illustration in this section.
Item | Icon | Component | Item | Icon | Component |
1 | ![]() | USB 3.1 Gen 1 port* | 4 | ![]() | Audio-out (headphone)/Audio-in (microphone) combo jack |
2 | ![]() | USB 3.1 Gen 1 charging port | 5 | Main storage LED | |
3 | ![]() | Headphone jack | 6 | ![]() | Dual-state power button |
*Upgradeable to USB 3.1 Gen 2 port (10 Gbits/s data speed) in select configurations
|
Rear panel components
Figure : Rear panel components
NOTE:
Your computer model may look slightly different from the illustration in this section.
Item | Icon | Component | Item | Icon | Component |
1 | Antenna cover | 7 | ![]() | Dual-Mode DisplayPort (2) | |
2 | Thumbscrew | 8 | ![]() | USB 3.1 Gen 1 ports (2) | |
3 | ![]() | USB 3.1 Gen 1 port | 9 | Optional port One of the following ports may be used: DisplayPort, HDMI, VGA, USB Type-C, or serial port | |
4 | ![]() | Security cable slot | 10 | ![]() | USB 2.0 port |
5 | External antenna connector (optional) | 11 | ![]() | RJ-45 (network) jack/status lights | |
6 | Padlock loop | 12 | ![]() | Power connector |
