TY1
It’s got you covered – all day & all night.
Specifications
| Model Parameters | |
|---|---|
| Model | Model CS-TY1-B0-1G2WF |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 |
| Video Bit Rate | Full HD, HD, Standard. Adaptive bit rate. |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud proprietary protocol |
| Interface Protocol | EZVIZ Cloud proprietary protocol |
| Interface | |
| Storage | MicroSD card slot (Max. 256GB) |
| Power | Micro USB |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps |
| Operating Environment | |
| Temperature | -10°C to 45°C (14°F to 113 °F) |
| Humidity | 95% or less (non-condensing) |
| General | |
| Power Supply | DC 5V/1A |
| Power Consumption | 5W max |
| IR Range | MAX. 10 meters (32.81 ft.) |

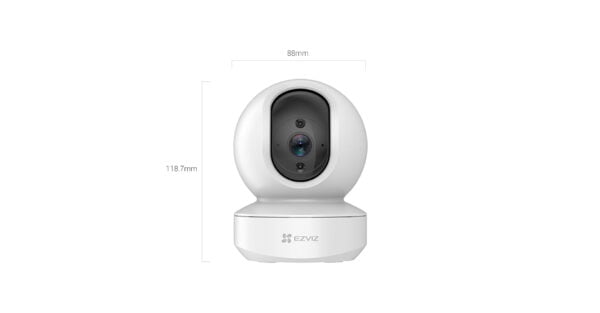

| Dimensions | 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch) |
| Packaging Dimensions | 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch) |
| Net Weight | 259g (9.14oz) |
